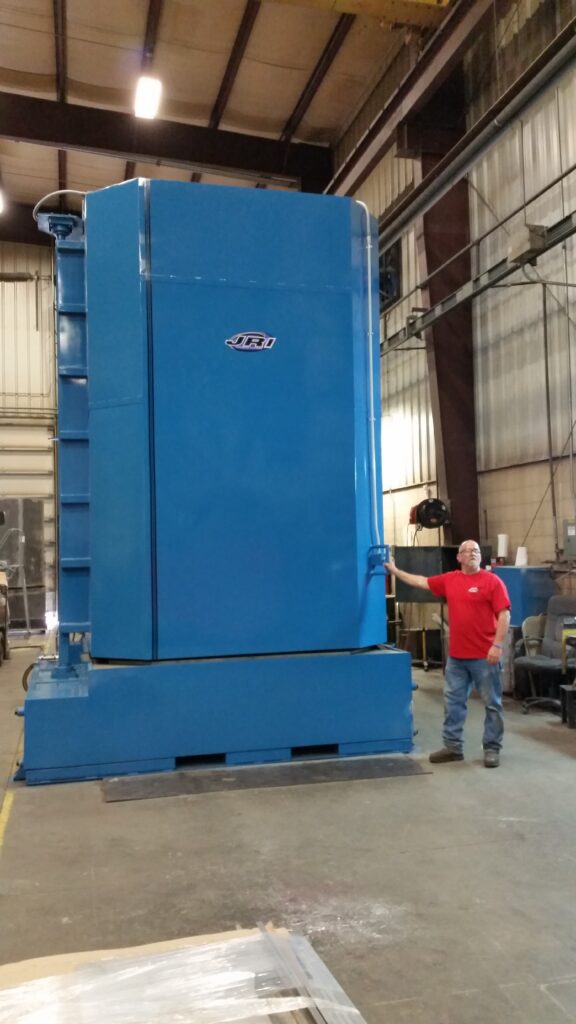

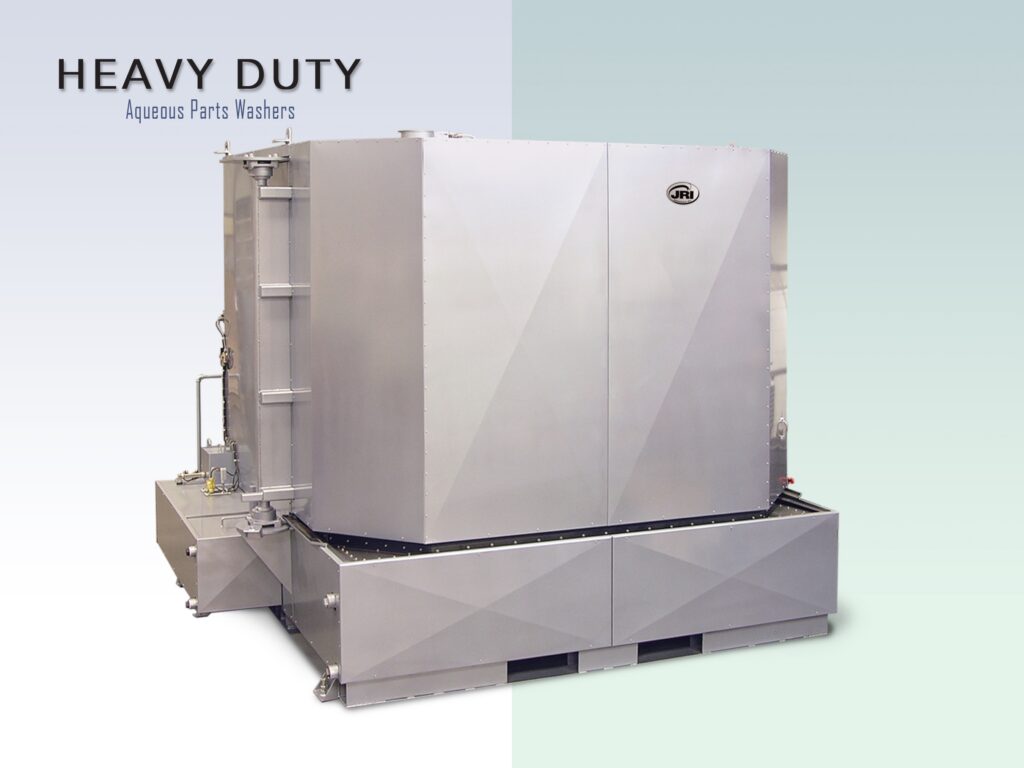

Heavy-Duty Parts Washers

Made with durable, heavyweight 7GA steel, our heavy-duty parts washers provide targeted cleaning and long-term reliability. Wash, rinse and dry. These systems can incorporate multi-stage cleaning cycles in any combination to meet your specific application.

The heavy-duty series is available in 12 standard models with turntable diameters up to 144″ and weight capacities up to 50,000 lbs.

Request My Quote

Vertical pump systems allows working pressures of up to 200 PSI
7-gauge steel construction
Mechanical door seals instead of rubberized seals that often leak
Premium components and industrial controls support years of trouble-free operation

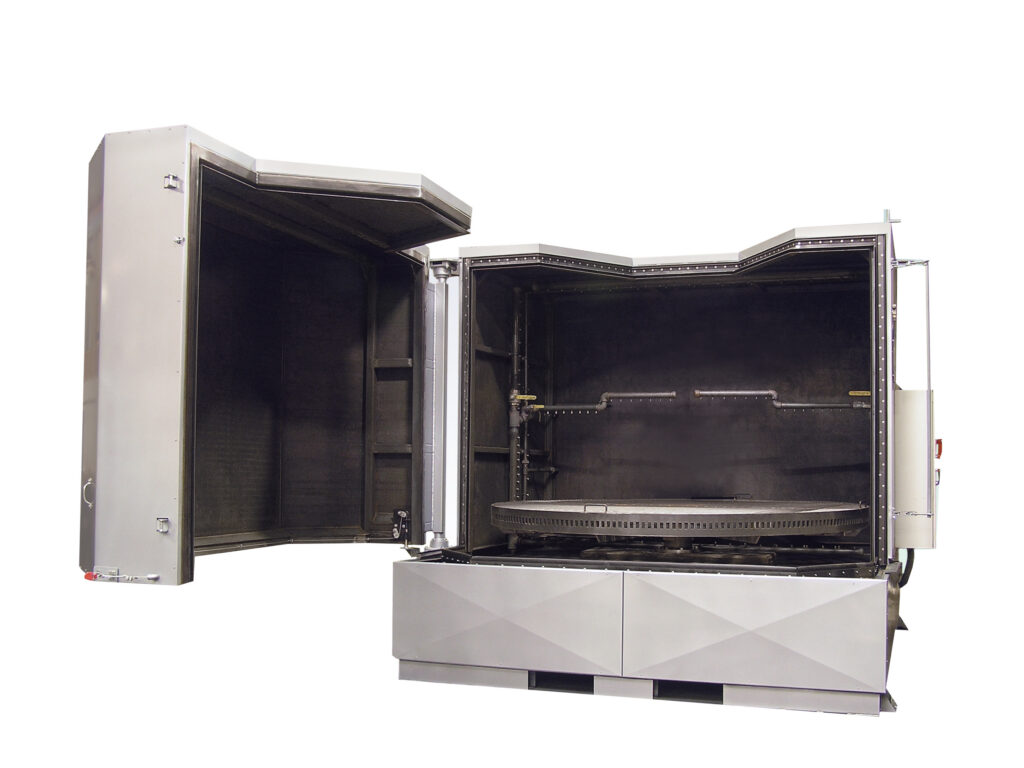

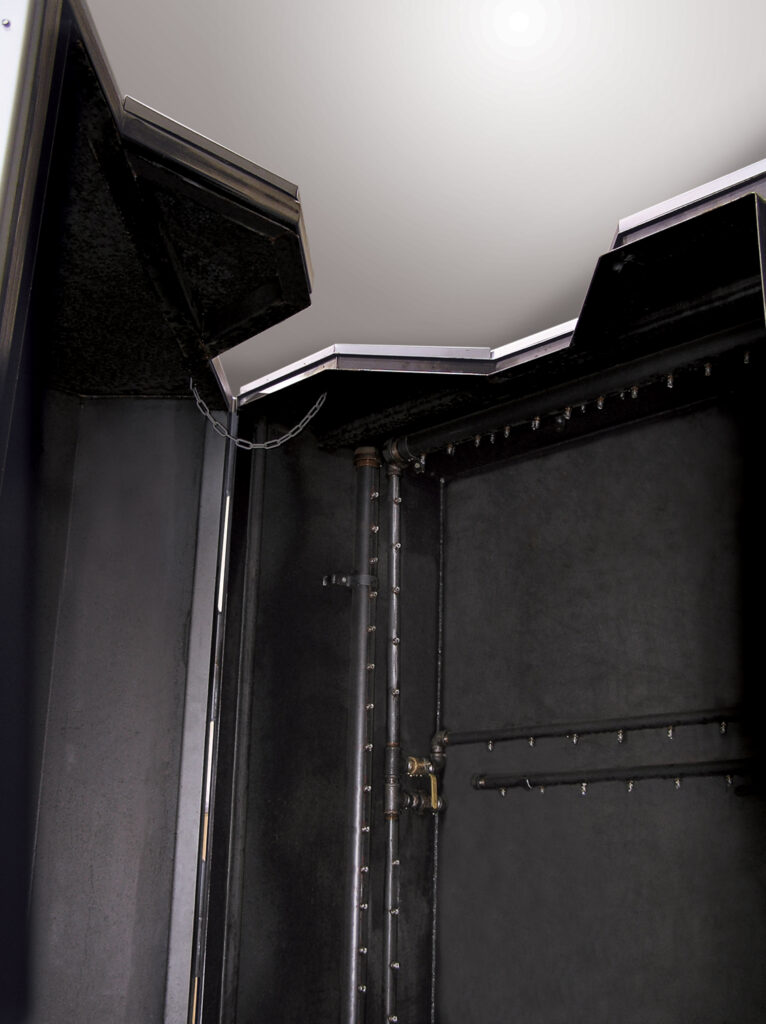

Swing-out V-notch doors for full turntable access
Side discharge chip tray with built-in weir system
Easy-to-clean chip basket extends the life of cleaning solution
Disc-style stainless steel oil skimmer efficiently removes oils from cleaning solution
Two-function, 24/7 timer controls heat start/stop and oil skimmer for worry-free operation
Upgraded low water shut-off & auto fill for safety and convenience

Jenfab meets customer needs rather than offering a “one size fits all” system. Heavy-duty washers can be purchased with the following equipment to customize the system. Let our team know what customizations you need.

Oscillating spray manifolds to enhance cleaning of complex parts
Gas and steam heat options
Oil coalescing systems for high oils applications

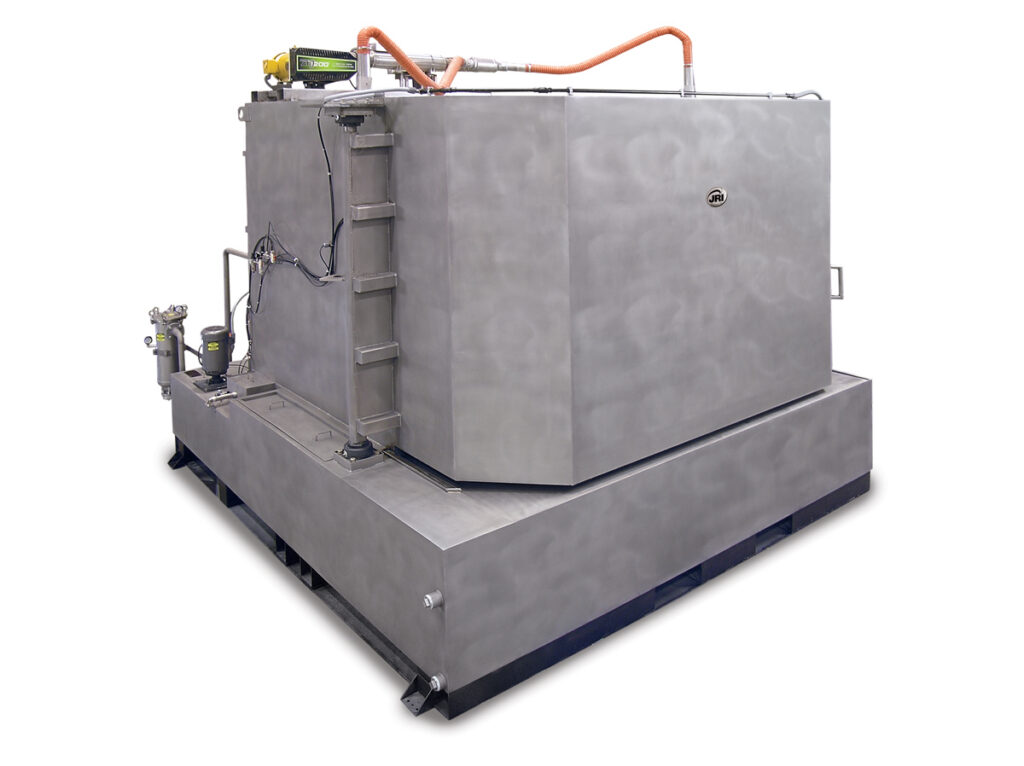

Stainless steel construction for extreme pH chemistry
Particulate bag filtration with micron sizes from 5 to 600 mic
Re-circulating and no recirculating rinses for removing detergent residue for precision cleaning
Heated and non-heated blow-off stages for fast water removal
Sludge extraction systems to remove heavy solids from sump area
Steam exhaust systems to limit steam in your facility
Insulation packages to reduce outside surface temperatures and improve thermal efficiency

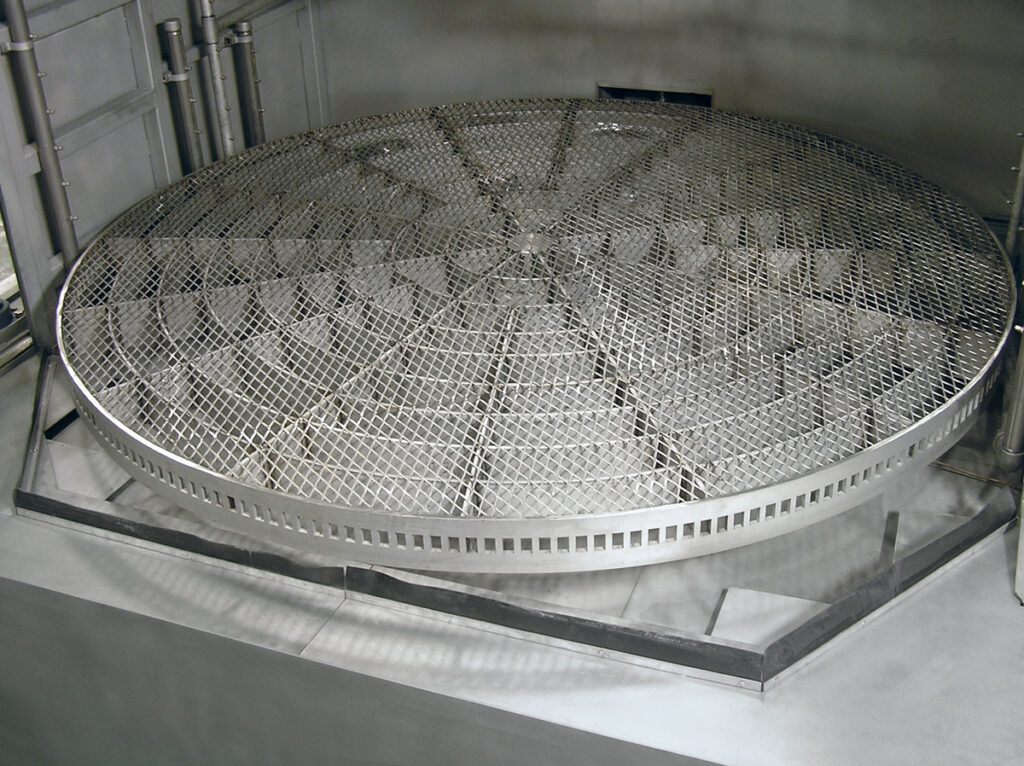

Multi-level turntables that increase cleaning space without increasing footprint
Custom fixturing including parts trees, racks and hangers

Model	Turntable Diameter (in)	Inside Working Height (in)	Weight Capacity (lb)	Pump (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Turntable Door Design
HDS-3142	31	42	2,000	10	75/150	190	24	V Notch Tower
HDS-4255	42	55	3,000	15	75/200	300	36	V Notch Tower
HDS-5060	50	60	5,000	30	140/250	450	72	V Notch Tower
HDS-6060	60	60	5,000	30	140/250	600	72	V Notch Tower
HDS-6072	60	72	5,000	30	140/250	600	72	V Notch Tower
HDS-60112	60	112	5,000	DUAL 30	200/250	600	72	V Notch Tower
HDS-7260	72	60	5,000	DUAL 30	200/250	650	72	V Notch Tower
HDS-7272	72	72	5,000	DUAL 30	200/250	650	72	V Notch Tower
HDS-8484	84	84	5,000	DUAL 30	200/250	1250	72	V Notch Tower
HDS-8496	84	96	5,000	DUAL 30	200/250	1250	72	V Notch Tower
HDS-10872	108	72	10,000	DUAL 30	200/250	2200	72	V Notch Tower
HDS-12084	120	84	10,000	DUAL 30	200/250	2500	72	V Notch Tower

Vertical pump systems allows working pressures of up to 200 PSI
7-gauge steel construction
Mechanical door seals instead of rubberized seals that often leak
Premium components and industrial controls support years of trouble-free operation
Swing-out V-notch doors for full turntable access
Side discharge chip tray with built-in weir system
Easy-to-clean chip basket extends the life of cleaning solution
Disc-style stainless steel oil skimmer efficiently removes oils from cleaning solution
Two-function, 24/7 timer controls heat start/stop and oil skimmer for worry-free operation
Upgraded low water shut-off & auto fill for safety and convenience

Oscillating spray manifolds to enhance cleaning of complex parts
Gas and steam heat options
Oil coalescing systems for high oils applications
Stainless steel construction for extreme pH chemistry
Particulate bag filtration with micron sizes from 5 to 600 mic
Re-circulating and no recirculating rinses for removing detergent residue for precision cleaning
Heated and non-heated blow-off stages for fast water removal
Sludge extraction systems to remove heavy solids from sump area
Steam exhaust systems to limit steam in your facility
Insulation packages to reduce outside surface temperatures and improve thermal efficiency
Multi-level turntables that increase cleaning space without increasing footprint
Custom fixturing including parts trees, racks and hangers

Model	Turntable Diameter (in)	Inside Working Height (in)	Weight Capacity (lb)	Pump (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Turntable Door Design
HDS-3142	31	42	2,000	10	75/150	190	24	V Notch Tower
HDS-4255	42	55	3,000	15	75/200	300	36	V Notch Tower
HDS-5060	50	60	5,000	30	140/250	450	72	V Notch Tower
HDS-6060	60	60	5,000	30	140/250	600	72	V Notch Tower
HDS-6072	60	72	5,000	30	140/250	600	72	V Notch Tower
HDS-60112	60	112	5,000	DUAL 30	200/250	600	72	V Notch Tower
HDS-7260	72	60	5,000	DUAL 30	200/250	650	72	V Notch Tower
HDS-7272	72	72	5,000	DUAL 30	200/250	650	72	V Notch Tower
HDS-8484	84	84	5,000	DUAL 30	200/250	1250	72	V Notch Tower
HDS-8496	84	96	5,000	DUAL 30	200/250	1250	72	V Notch Tower
HDS-10872	108	72	10,000	DUAL 30	200/250	2200	72	V Notch Tower
HDS-12084	120	84	10,000	DUAL 30	200/250	2500	72	V Notch Tower

Benefits Of
Heavy-Duty Parts Washers

Excellent for railroad, remanufacturing, mining, marine, energy and other industrial cleaning applications.

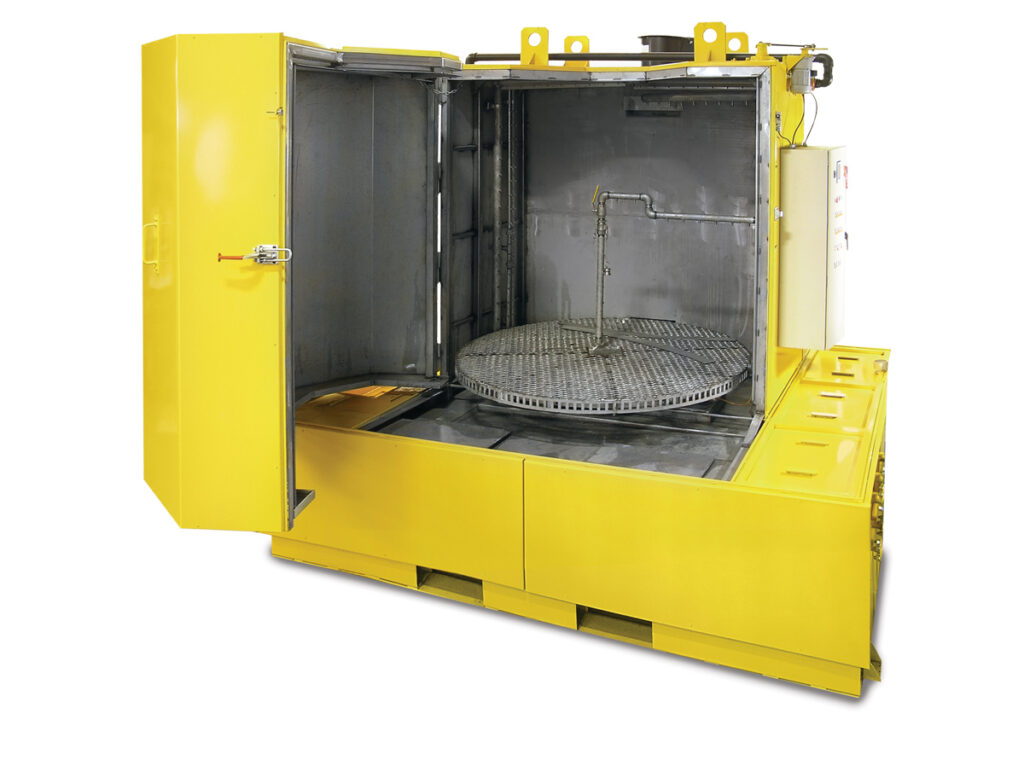

Loading big parts is safe and easy with swing-out, V-notch door design.

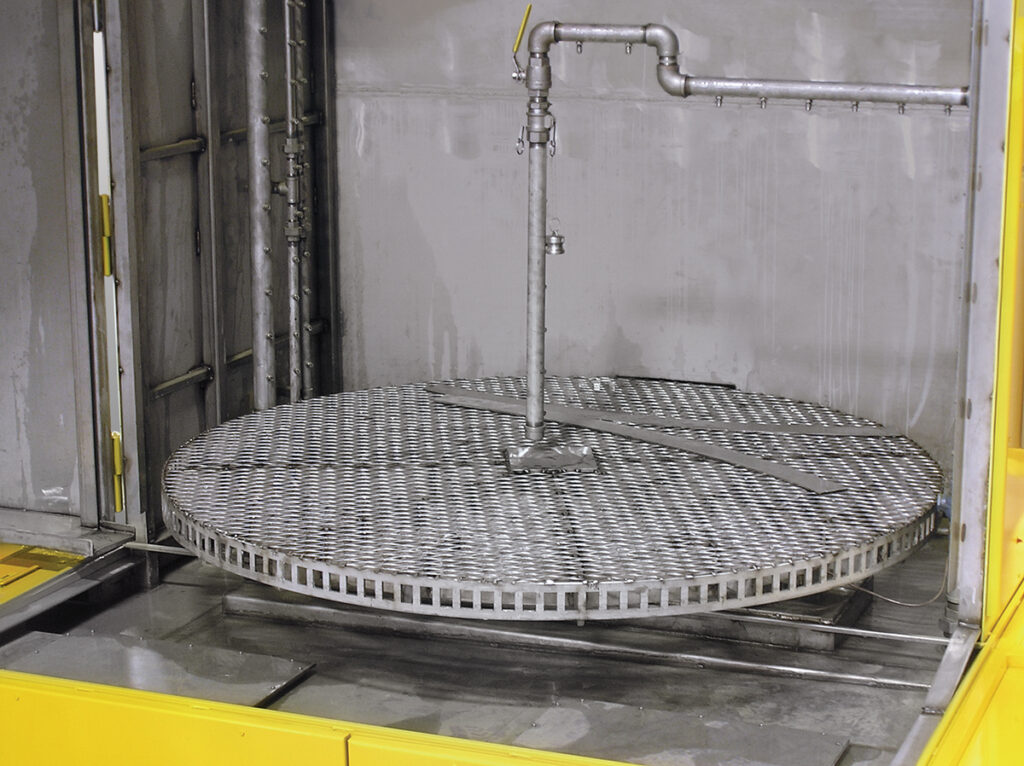

Swing-away mid-level spray manifolds offer better impingement on smaller parts.

Durable 7GA steel construction handles the most severe applications.

Built-in oil skimmer and chip basket extend the life of your cleaning solution.
