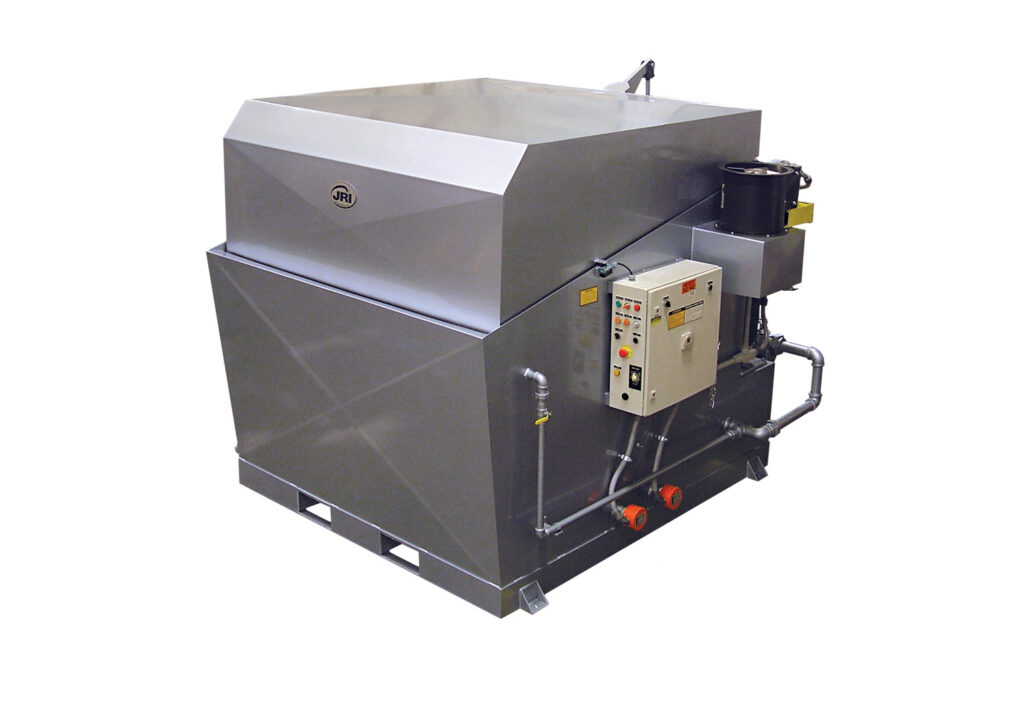

TL Top Load Spray Cabinet Parts Washer

Our TL top-load spray cabinet parts washers are perfect for cellular washing or when you need a value-added cleaning process in a small space. Standard top-load spray wash cabinet models come with turntables ranging from 21″ to 72″ and turntable can be up to 120″ on custom models. We can even index the turntable for a robotic load and unload on custom systems.

Request My Quote

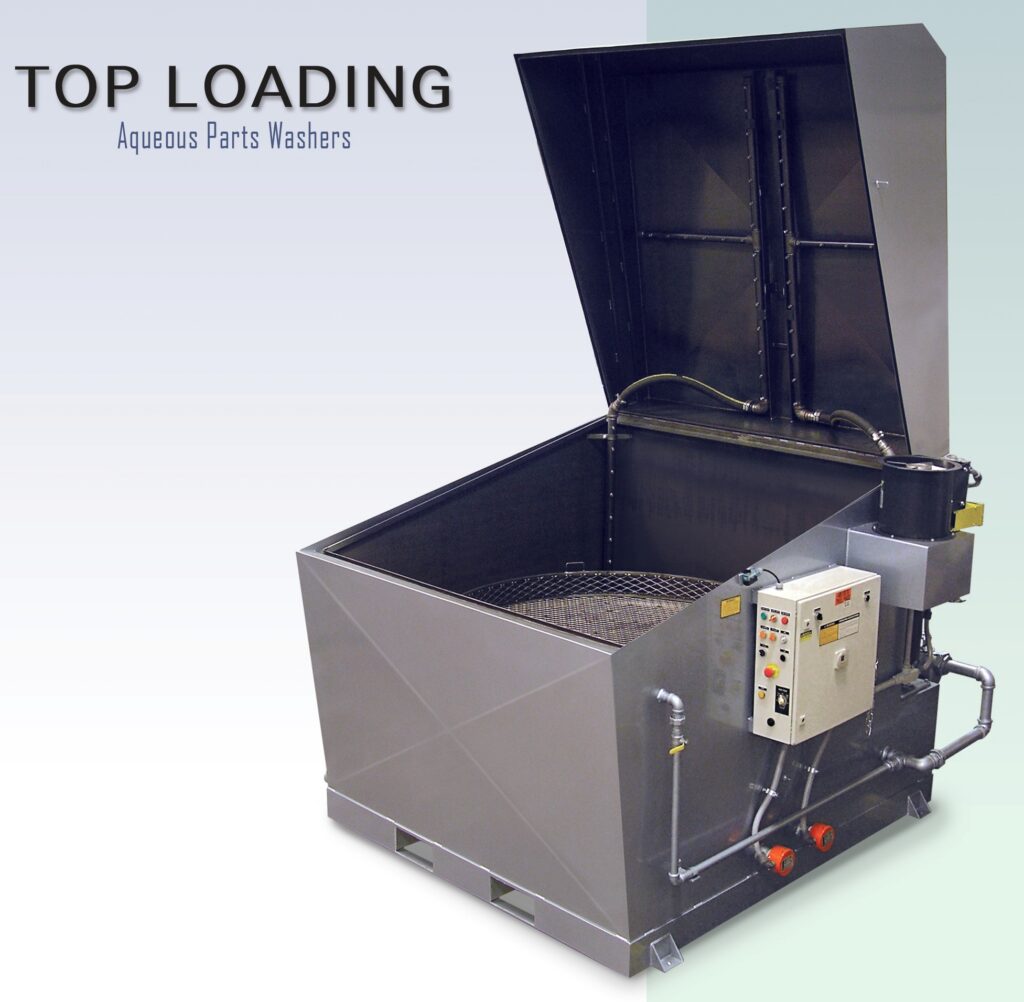

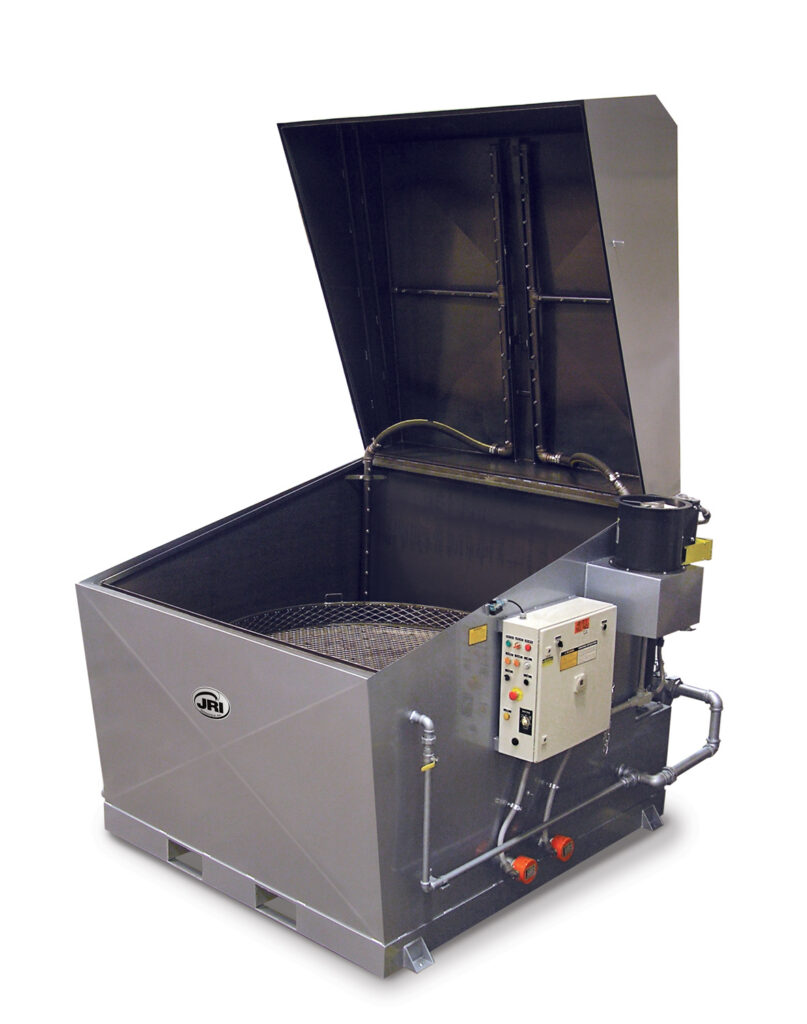

Swing-away top manifold for easy loading and unloading clearance
Low water shut-off protects heat elements
Bushed stainless steel V-Jet nozzles
Mechanical door seals instead of leaky rubber seals
Gear drive turntable with overcurrent protection
Strut or hydraulic actuated lid. TL-42 models and above have standard hydraulic actuated lids.
Debris screen
Option ready shelf for easy, plug-n-play infield installation
Control panel features NEMA rated electrical closure and IEC components with rotary illuminated cam switches, meeting NFPA wiring standards

Jenfab meets customer needs rather than offering a “one size fits all” system. TL top-load parts washers can be purchased with the following equipment to customize the system. Let our team know what customizations you need.

Various voltages available: 230v 1-phase, 208v 3-phase, 230v 3-phase, 460v 3-phase, 575v 3-phase, Canadian CSA standards and industrial upgrades
Disc-style stainless oil skimmer
Stainless steel construction with all wetted components- SS2 package
Auto water fill
Low water fill
Particulate bag filtration
1 or 2 function timers
Insulation packages
High pressure/flow pumps
Custom part fixturing and spray manifolds
Power disconnect
Freshwater or re-circulating rinse options
Compressed air or regenerative blow-off systems, heated or non-heated

Model	Turntable Diameter (in)	Inside Working Height (in)	Load Capacity (lb)	Pump Motor Size (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Lid Operation
TL-25	25″	24″	1,000	3	45/50	85	9	STRUT ASSIST
TL-36	36″	32″	1,000	5	58/85	148	18	HYDRAULIC ACTUATED
TL-50	50″	36″	2,500	10	75/150	290	36	HYDRAULIC ACTUATED
TL-60	60″	36″	2500	15	72/200	460	36	HYDRAULIC ACTUATED
TL-72	72″	36″	2500	15	72/200	590	36	HYDRAULIC ACTUATED

Swing-away top manifold for easy loading and unloading clearance
Low water shut-off protects heat elements
Bushed stainless steel V-Jet nozzles
Mechanical door seals instead of leaky rubber seals
Gear drive turntable with overcurrent protection
Strut or hydraulic actuated lid. TL-42 models and above have standard hydraulic actuated lids.
Debris screen
Option ready shelf for easy, plug-n-play infield installation
Control panel features NEMA rated electrical closure and IEC components with rotary illuminated cam switches, meeting NFPA wiring standards

Various voltages available: 230v 1-phase, 208v 3-phase, 230v 3-phase, 460v 3-phase, 575v 3-phase, Canadian CSA standards and industrial upgrades
Disc-style stainless oil skimmer
Stainless steel construction with all wetted components- SS2 package
Auto water fill
Low water fill
Particulate bag filtration
1 or 2 function timers
Insulation packages
High pressure/flow pumps
Custom part fixturing and spray manifolds
Power disconnect
Freshwater or re-circulating rinse options
Compressed air or regenerative blow-off systems, heated or non-heated

Model	Turntable Diameter (in)	Inside Working Height (in)	Load Capacity (lb)	Pump Motor Size (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Lid Operation
TL-25	25″	24″	1,000	3	45/50	85	9	STRUT ASSIST
TL-36	36″	32″	1,000	5	58/85	148	18	HYDRAULIC ACTUATED
TL-50	50″	36″	2,500	10	75/150	290	36	HYDRAULIC ACTUATED
TL-60	60″	36″	2500	15	72/200	460	36	HYDRAULIC ACTUATED
TL-72	72″	36″	2500	15	72/200	590	36	HYDRAULIC ACTUATED

Benefits Of
TL Top-Load Washers

Design a custom system with a turntable as large as needed and weight capacities to match.

Options include stainless steel construction, multiple rinse stages and blow-off stages.

Bushed stainless steel V-Jet nozzles offer precise 360-degree cleaning coverage.

Sprocket drive system eliminates troubles that arise with belt or chain drives.

Strut or hydraulic actuated lid options improve safety and ease of use.
