PCS Front-Load Parts Washers

Our PCS front-loading, spray cabinet parts washers are the best your money can buy. Precision cleaning and reliability combine to make these systems a tried-and-true standard in the spray wash cabinet cleaning industry.

Choose from standard front-load washer cabinet models or design a custom unit with turntable diameters of up to 120” and weight capacities of up to 50,000 lbs.

Request My Quote

Reliable vertical pump systems
Watlow heat elements
Industrial controls with lighted switches
Mechanical door seals

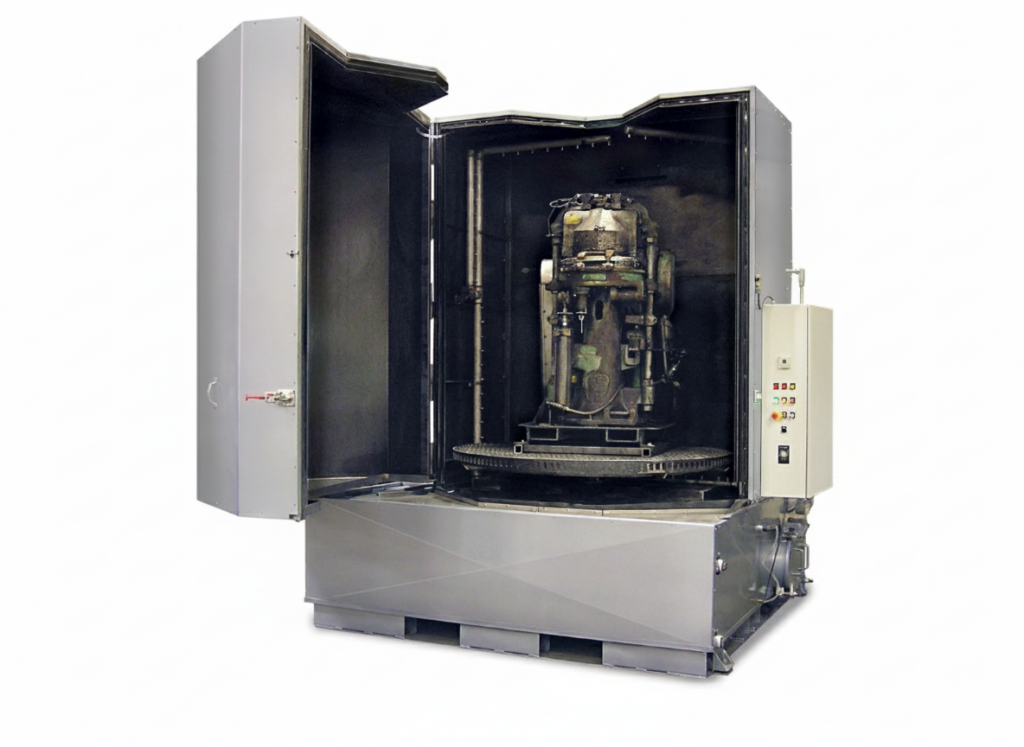

Large swing-out doors for full access
Gear drive turntable with overcurrent protection
Option ready shelf for easy, plug-n-play infield installation
Low water shut-off protects heat elements
Swing-away spray manifolds
Brushed stainless steel nozzles
“V” notched door on 50” and larger for easy access to the turntable with a customer-supplied hoist system

Jenfab meets customer needs rather than offering a “one size fits all” system. PCS front-load units can be purchased with the following equipment to customize the system. Let our team know what customizations you need.

Auto water fill

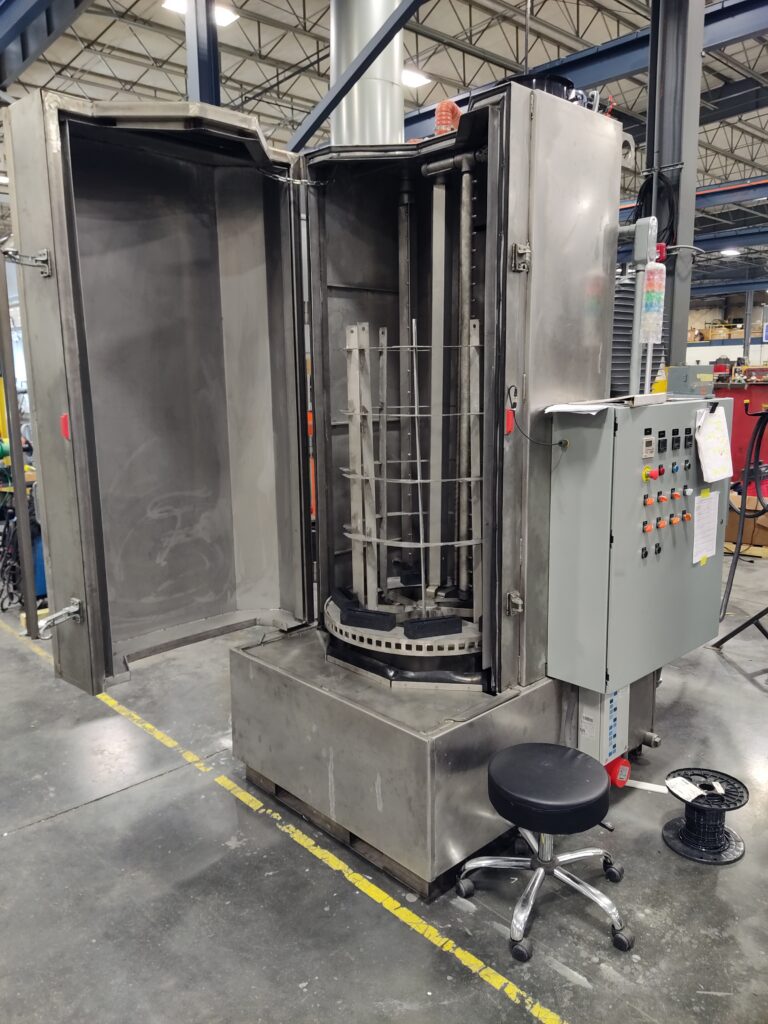

Custom fixturing
Disc style stainless steel oil skimmer
Dual turntable options
1 or 2 function timers
Gas & steam heat options
Heat upgrades
Heated & non-heated blow-off stages
Insulation packages
Oil coalescing systems
Particulate bag filtration
Pump upgrades
Re-circulating & non-recirculating rinse stages
Service disconnects
Sludge extraction systems
Stainless steel construction with all wetted components - SS2 package
Steam exhaust systems
Weight capacity upgrades

Model	Turntable Diameter (in)	Inside Working Height (in)	Weight Capacity (lb)	Pump (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Turntable Door Design	Overall Dimensions (l x w x h)
PCS-2532	25	32	1,000	3	45/50	85	9	Non-rollout	49 x 43 x 68
PCS-3136	31	36	1,000	3	45/50	125	12	Roll-Out	58 x 51 x 73
PCS-3148	31	48	1,000	5	58/85	125	12	Roll-Out	58 x 52 x 85
PCS-3648	36	48	1,500	5	68/120	148	18	Roll-Out	66 x 57 x 97
PCS-3660	36	60	1,500	7.5	68/120	148	18	Roll-Out	66 x 57 x 97
PCS-4260	42	60	1,500	7.5	68/120	250	18	Roll-Out	72 x 66 x 100
PCS-4272	42	72	1,500	10	68/150	250	36	V-Notch	72 x 66 x 114
PCS-5060	50	60	2,500	15	72/200	350	36	V-Notch	82 x 73 x 101
PCS-5072	50	72	2,500	15	72/200	350	36	V-Notch	82 x 73 x 113
PCS-6060	60	60	2,500	15	72/200	500	36	V-Notch	92 x 85 x 106
PCS-6072	60	72	2,500	15	72/200	500	36	V-Notch	92 x 85 x 118
PCS-7260	72	60	2,500	15	72/200	670	36	V-Notch	104 x 97 x 106
PCS-7272	72	72	2,500	15	72/200	670	36	V-Notch	104 x 97 x 118

Reliable vertical pump systems
Watlow heat elements
Industrial controls with lighted switches
Mechanical door seals
Large swing-out doors for full access
Gear drive turntable with overcurrent protection
Option ready shelf for easy, plug-n-play infield installation
Low water shut-off protects heat elements
Swing-away spray manifolds
Brushed stainless steel nozzles
“V” notched door on 50” and larger for easy access to the turntable with a customer-supplied hoist system

Auto water fill
Custom fixturing
Disc style stainless steel oil skimmer
Dual turntable options
1 or 2 function timers
Gas & steam heat options
Heat upgrades
Heated & non-heated blow-off stages
Insulation packages
Oil coalescing systems
Particulate bag filtration
Pump upgrades
Re-circulating & non-recirculating rinse stages
Service disconnects
Sludge extraction systems
Stainless steel construction with all wetted components - SS2 package
Steam exhaust systems
Weight capacity upgrades

Model	Turntable Diameter (in)	Inside Working Height (in)	Weight Capacity (lb)	Pump (hp)	Pump Output (psi/gpm)	Solution Capacity (gallons)	Heat Source (kw)	Turntable Door Design	Overall Dimensions (l x w x h)
PCS-2532	25	32	1,000	3	45/50	85	9	Non-rollout	49 x 43 x 68
PCS-3136	31	36	1,000	3	45/50	125	12	Roll-Out	58 x 51 x 73
PCS-3148	31	48	1,000	5	58/85	125	12	Roll-Out	58 x 52 x 85
PCS-3648	36	48	1,500	5	68/120	148	18	Roll-Out	66 x 57 x 97
PCS-3660	36	60	1,500	7.5	68/120	148	18	Roll-Out	66 x 57 x 97
PCS-4260	42	60	1,500	7.5	68/120	250	18	Roll-Out	72 x 66 x 100
PCS-4272	42	72	1,500	10	68/150	250	36	V-Notch	72 x 66 x 114
PCS-5060	50	60	2,500	15	72/200	350	36	V-Notch	82 x 73 x 101
PCS-5072	50	72	2,500	15	72/200	350	36	V-Notch	82 x 73 x 113
PCS-6060	60	60	2,500	15	72/200	500	36	V-Notch	92 x 85 x 106
PCS-6072	60	72	2,500	15	72/200	500	36	V-Notch	92 x 85 x 118
PCS-7260	72	60	2,500	15	72/200	670	36	V-Notch	104 x 97 x 106
PCS-7272	72	72	2,500	15	72/200	670	36	V-Notch	104 x 97 x 118

Benefits Of
PCS Front-Load Washers

Large swing-out door makes the PSC the most accessible turntable on the market.

Mechanical seal stops leaks better than common rubberized seals.

Innovative low water shut-off technology protects heating elements.

Gear drive turntable eliminates slippage associated with chain or belt drive systems.

PCS offers better impingement for smaller parts.
